Products >> Power Semiconductor Device >> KP200A~KP5000A
| Type | IT（AV） A | VDRMVRRM V |
IDRMIRRM
≤mA
|
VTM ≤V; | IGT ≤mA | VGT ≤V | IH ≤mA | dv/dt V/µs | di/dt A/µs |
Rjc |
Tj ℃ |
outline |
| KP200A |
200
|
100-3000
|
10 | 1.6 | 150 | 2 | 150 | 1000 | 100 | 0.4 | 125 |

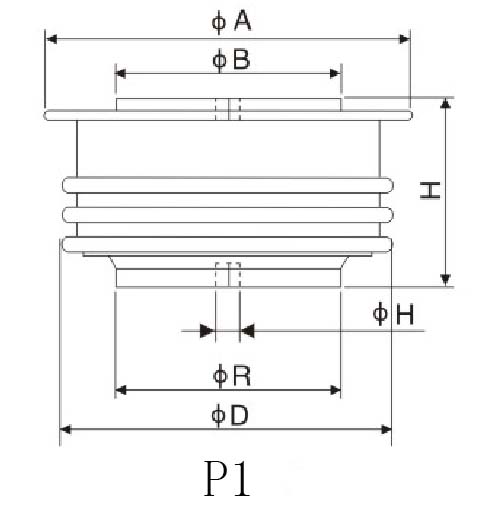

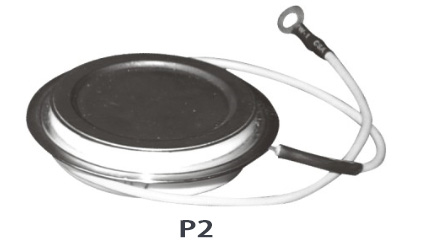

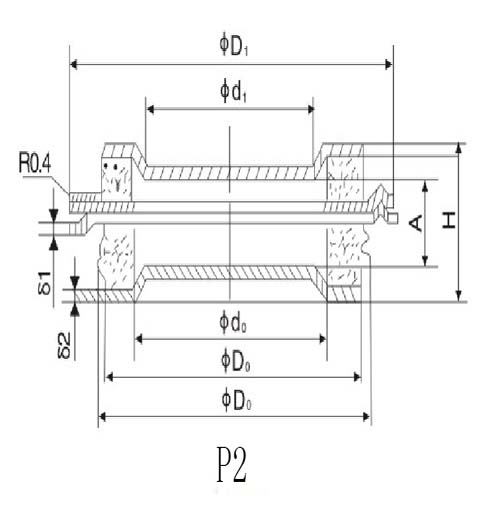

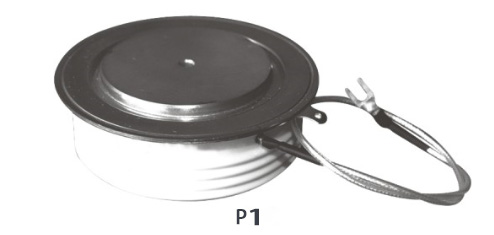

P1 P2 |
| KP300A |
300
|
100-3000
|
15 | 1.6 | 150 | 2 | 150 | 1000 | 100 | 0.4 | 125 | |
| KP500A |
500
|
100-3000
|
15 | 1.8 | 150 | 2 | 150 | 1000 | 100 | 0.24 | 125 | P1 |
| KP800A |
800
|
100-3000
|
20 | 1.8 | 150 | 2 | 150 | 1000 | 100 | 0.24 | 125 | |
| KP1000A |
1000
|
100-3000
|
20 | 1.8 | 150 | 2 | 150 | 1000 | 100 | 0.15 | 125 | |
| KP1500A |
1500
|
100-3000
|
30 | 1.8 | 150 | 2 | 150 | 1000 | 150 | 0.08 | 125 | |
| KP2000A |
200
|
100-3000
|
30 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.08 | 125 | |
| KP2500A |
2500
|
100-3000
|
50 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.08 | 125 | |
| KP3000A |
3000
|
100-3000
|
50 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.027 | 125 | |
| KP3500A |
3500
|
100-3000
|
60 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.027 | 125 | |
| KP4000A |
4000
|
100-3000
|
60 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.018 | 125 | |
| KP5000A |
5000
|
100-3000
|
100 | 1.8 | 200 | 2.5 | 200 | 1000 | 150 | 0.018 | 125 |
