Products >> High voltage diodes >> CL03 Series
Application in X-ray power supply and high frequency doubler rectifier circuit.
120mA to 400mA, 8kv to 30kv, 100ns
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | Vf(V) | Ir1(uA) |
Trr(us)
|

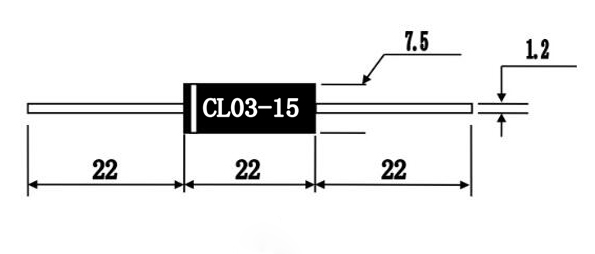

Outline | |
| CL03-08 | 8 | 400 | 20 | -55~160 | 17 | 2 | 100 | φ7.5*22 φ1.2 | |
| CL03-10 | 10 | 300 | 20 | -55~160 | 18 | 2 | 100 | φ7.5*22 φ1.2 | |
| CL03-12 | 12 | 250 | 20 | -55~160 | 21 | 2 | 100 | φ7.5*22 φ1.2 | |
| CL03-15 | 15 | 200 | 20 | -55~160 | 25 | 2 | 100 | φ7.5*22 φ1.2 | |
| CL03-20 | 20 | 120 | 20 | -55~160 | 30 | 2 | 100 | φ7.5*22 φ1.2 | |
| CL03-30 | 30 | 120 | 20 | -55~160 | 38 | 2 | 100 | φ7.5*22 φ1.2 | |
Total: 4
Page: 1 / 1
