Products >> High voltage diodes(40kv, 500mA) >> 2CL2 Series
Application in X-ray power supply and high frequency doubler rectifier circuit.
60 to 140 mA, 8 to 35 kV, 100 nS to Standard Recovery,
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | Vf(V) | Ir1(uA) |
Trr(us)
(If=2mA,IRM=4mA)
|

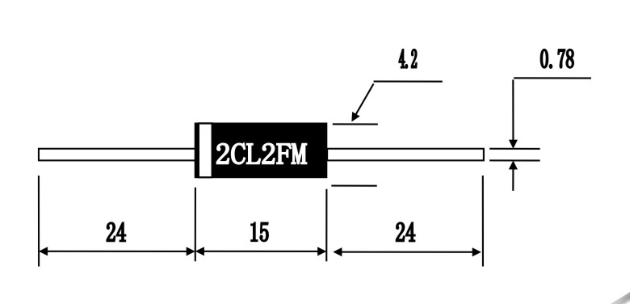

Outline | |
| 2CL2G | 10 | 160 | 15 | -55~160 | 10 | 2 | - | φ4.2*15 φ0.78 | |
| 2CL2H | 12 | 160 | 15 | -55~160 | 12 | 2 | - | φ4.2*15 φ0.78 | |
| 2CL2J | 15 | 160 | 15 | -55~160 | 15 | 2 | - | φ4.2*15 φ0.78 | |
| 2CL2M | 20 | 160 | 15 | -55~160 | 20 | 2 | - | φ4.2*15 φ0.78 | |
| 2CL2FG | 10 | 100 | 10 | -55~160 | 16 | 2 | 100 | φ4.2*15 φ0.78 | |
| 2CL2FL | 15 | 100 | 10 | -55~160 | 25 | 2 | 100 | φ4.2*15 φ0.78 | |
| 2CL2FM | 20 | 100 | 10 | -55~160 | 35 | 2 | 100 | φ4.2*15 φ0.78 | |
| 2CL2FP | 30 | 100 | 10 | -55~160 | 48 | 2 | 100 | φ4.2*15 φ0.78 | |
Total: 9
Page: 1 / 1
