Products >> High voltage diodes(40kv, 500mA) >> SP Series

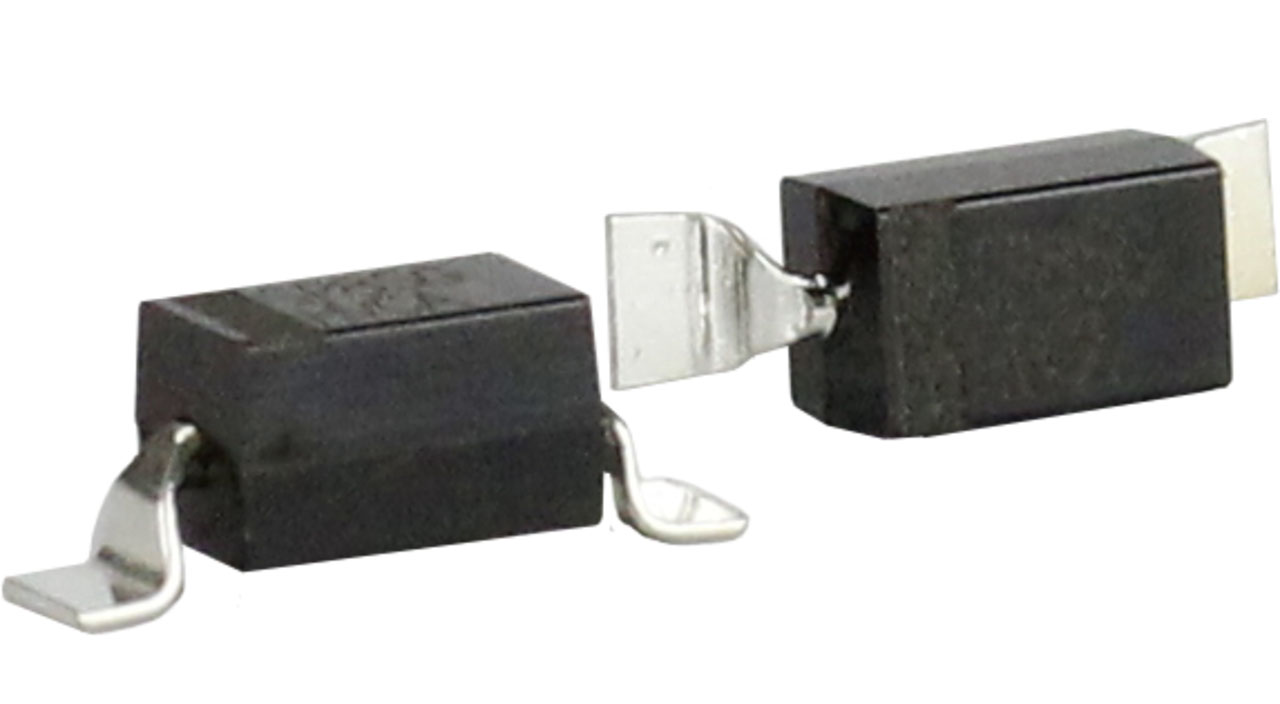

SP Series
40 to 750 mA, 3 to 8 kV, 50 to 100 nS, SMA Package
| Type | VRRM(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | VFM(V) | Ir1(uA) |
Trr(us)
|
||
| SP3SG | 3 | 120 | 15 | -55~125 | 12 | 2 | 100 | ||
| SP3LG | 3 | 450 | 15 | -40~175 | 12 | 2 | 100 | ||
| SP5SG | 5 | 40 | 3 | -40~175 | 14 | 2 | 100 | ||
| SP5LG | 5 | 240 | 10 | -40~175 | 14 | 2 | 100 | ||
| SP8SG | 8 | 40 | 10 | -40~175 | 18 | 5 | 100 | ||
| SP8LG | 8 | 100 | 10 | -40~175 | 18 | 5 | 100 | ||
| SPF01-10 | 10 | 10 | 1.0 | -40~175 | 21 | 5 | 100 | ||
| SPF01-20 | 20 | 10 | 1.0 | -40~175 | 35 | 5 | 100 | ||
| SPF02-10 | 10 | 20 | 2.0 | -40~175 | 21 | 5 | 100 | ||
| SPF02-20 | 20 | 10 | 1.0 | -40~175 | 35 | 5 | 100 | ||
Total: 5
Page: 1 / 1
