Products >> High voltage diodes >> HVF37 Series
Application in X-ray power supply and high frequency doubler rectifier circuit.
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | VFM(V) | Ir1(uA) |
Trr(us)
|

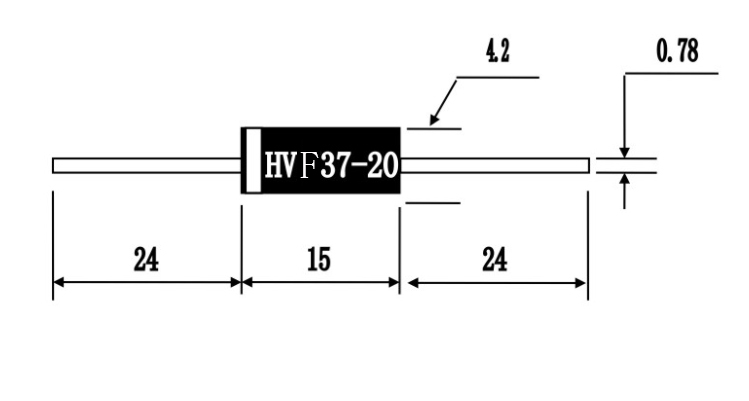

Outline | |
| HVF37-08 | 8 | 450 | 30 | -55~160 | 18 | 2 | 60 | φ4.2*15 φ0.78 | |
| HVF37-10 | 10 | 400 | 30 | -55~160 | 20 | 2 | 60 | φ4.2*15 φ0.78 | |
| HVF37-12 | 12 | 350 | 30 | -55~160 | 24 | 2 | 60 | φ4.2*15 φ0.78 | |
| HVF37-15 | 15 | 300 | 30 | -55~160 | 28 | 2 | 60 | φ4.2*15 φ0.78 | |
| HVF37-20 | 20 | 200 | 30 | -55~160 | 33 | 2 | 60 | φ4.2*15 φ0.78 | |
| HVF37-30 | 30 | 150 | 30 | -55~160 | 40 | 2 | 60 | φ4.2*15 φ0.78 | |
