Products >> Top Brand Sourcing >> HVP5-HVP16

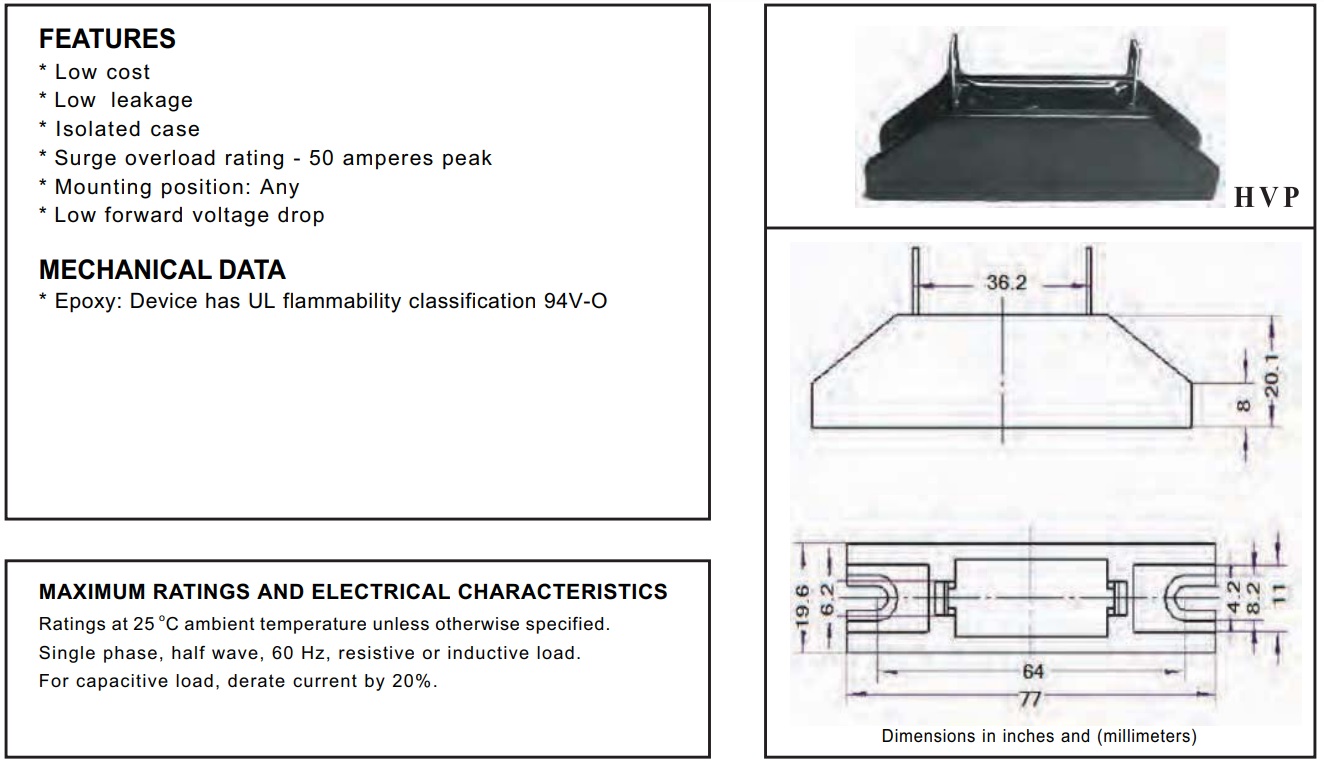

High Voltage Rectifiers · HVP5 - HVP16
Email: [email protected]
| Ratings | Symbol | HVP5 | HVP8 | HVP10 | HVP12 | HVP14 | HVP15 | HVP16 | Units |
| Maximum Recurrent Peak Reverse Voltage | Vrrm | 5 | 8 | 10 | 12 | 14 | 15 | 16 | KV |
| Maximum RMS Voltage | Vrms | 3.5 | 5.6 | 7.0 | 8.4 | 9.8 | 10.5 | 11.2 | KV |
| Maximum DC Blocking Voltage | Vdc | 5 | 8 | 10 | 12 | 14 | 15 | 16 | KV |
| Peak Forward Rectied Current at Ta=50℃ | Io | 750 | mAmps | ||||||
| Peak Forward Surge Current | Ifsm | 50 | Amps | ||||||
| Typical Current Squard Time |
I2t |
10.37 | A2/Sec | ||||||
| Operating and Storage Temp | Tj, Tstg | -55 to +150 | ℃ | ||||||
