Products >> High Voltage Diodes(5mA ~ 100mA) >> High current diode

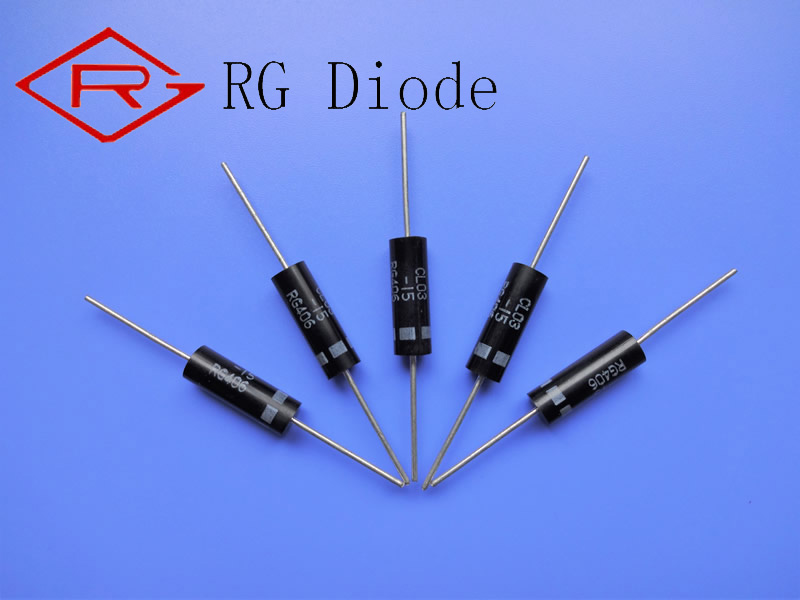

RG brand diodes --- High curent high voltage diodes
| Type | Vrrm(KV) | IF(AV)(mA) | IFSM(A) | Tstg(℃) | Vf(V) | Ir1(uA) |
Trr(us)
(If=2mA,IRM=4mA)
|
Outline | |
| 2CL87 | 20 | 20 | 3 | -40-+120 | 46 | 2 | 0.15 | φ3*12 | |
| CL03-15C | 15 | 100 | 15 | -40-+120 | 45 | 5 | 0.15 | φ4.5*15 | |
| CL03-18C | 18 | 100 | 15 | -40-+130 | 54 | 5 | 0.15 | φ4.5*15 | |
| CL03-20 | 20 | 100 | 10 | -40-+130 | 54 | 5 | 0.15 | φ4.5*15 | |
| CL03-15 | 15 | 100 | 15 | -40-+130 | 45 | 5 | 0.15 | φ7.5*22 | |
| CL08-08T | 8 | 350 | 15 | -40-+130 | 16 | 5 | 0.15 | φ7.5*22 | |
| CL08-08C | 8 | 350 | 15 | -40-+130 | 16 | 5 | 0.15 | φ4.5*15 | |
| CL08-10T | 10 | 350 | 15 | -40-+130 | 21 | 5 | 0.15 | φ7.5*22 | |
| CL08-10C | 10 | 350 | 15 | -40-+130 | 21 | 5 | 0.15 | φ7.5*22 | |
